Victron Energy MPPT 150/60 SmartSolar Solar Charge Controller TR MC4

$877.00
SKU SCC115060310
Connection Type
  • Charge current up to 60A, and PV voltage up to 150V
  • Automatically adjust to a 12, 24 or 48V nominal battery voltage
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions.
  • Bluetooth Smart built-in
  • Screw terminals

    Model: BlueSolar MPPT 150/60

    Charge current: 45 A
    Maximum PV Open Circuit Voltage: 150V
    Maximum PV Power: 860W (12V), 1720W (24V), 3440W (48V)
    Battery voltage (nominal): 12 / 24 /36 / 48 V auto select

    PV voltage up to 150 V

    The controller will automatically adjust to a 12, 24, 36 or 48V nominal battery voltage.

    Ultra-fast Maximum Power Point Tracking (MPPT)

    Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

    Advanced Maximum Power Point Detection in case of partial shading conditions

    If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

    Outstanding conversion efficiency

    Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

    Flexible charge algorithm

    Fully programmable charge algorithm (see the software page on the Victron website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

    Bluetooth Smart built-in

    Dongle not needed The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

    Optional: pluggable LCD display

    Simply remove the rubberseal that protects the plug on the front of the controller, and plug-in the display.

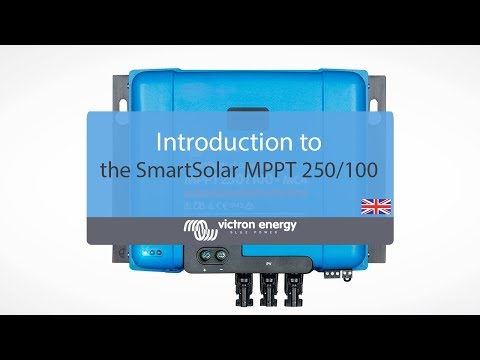

    NOTE: Image includes optional pluggable dislplay.

      Part Number SCC115060210
