Specifications

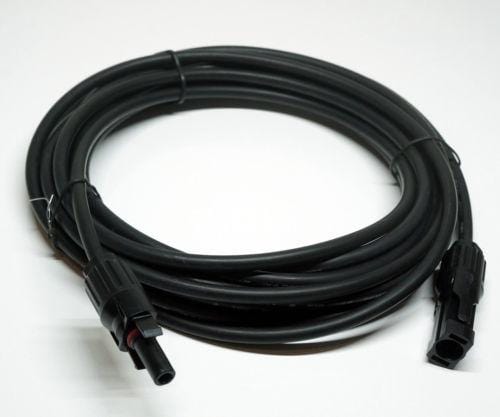

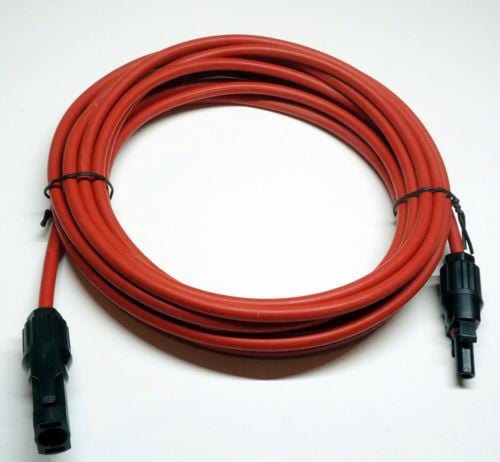

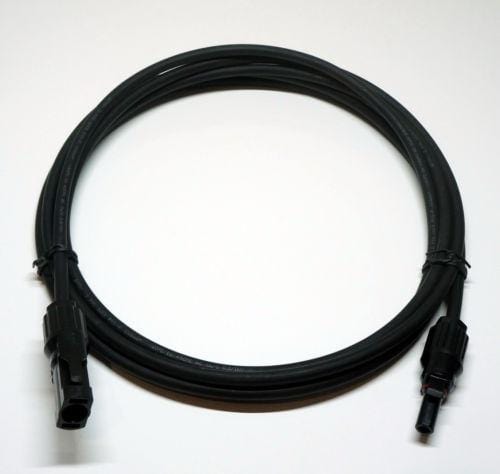

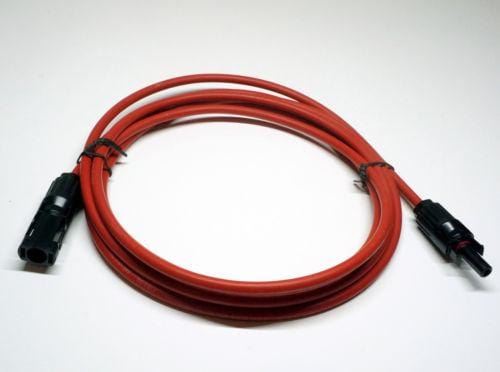

Solar PV Extension Cable 3m/6m
TUV approved Cable & MC4 Connector
Conductor: Tinned Copper
Description
• TUV certified and with water /weather proof rubber seal.
• The metal pin is made from quality machined copper and sealed tip.
• Application: Solar Panel's and Cables
• Conductor: Tinned, Tin plated
• Insulation: Material TPE / PA
• Cable Size: 4 mm Sq
• Colours: Black / Red
• Voltage Rating: 1000V DC Tested Voltage 6000V (50Hz, 1 min)
Features
• TUV Compliant
• High Thermolysis Efficiency
• High quality with anit-dust, anit-uv and anti-aging
• High resistance against oil, steam & bacteria
• IP67 Rated
Sizes Available
3m, 6m
| Connector: | |
| Mode: | RO-1 |
| Rated Current: | 25A(4mm2) |
| Withstanding Voltage: | 1000V DC |
| Safety Class: | Class II |
| Ambient temperature Range: | -40 °C~ +90 °C |
| Degree of Protection: | IP67 |
| Insertion Force: | ≤50N |
| Withdrawal Force: | ≥50N |
| Compatible Cable Cross Sections: | 4mm2 |
| Suitable Cable Outer Diameter Range: | φ5mm ~φ7mm |
| Insulation material: | PC |
| Contact material: | Copper, Tin plated |
| Flame Class: | UL94-VO |
| Weight: | 21 g |
| Solar Cable: | |
| Cable Size: | 4mm2 (12AWG equivalent) |
| Rated Current: | 55A |
| Rated Voltage: | 0.6 AC KV; DC 1.8KV |
| Ambient Temperature Range: | -40°C ~ +90°C |
| Conductor Resistance(20°C): | ≤3.39Ω/km |
| Test Voltage | 6.5 kV/5 min No breakdown |
| Strand design(No. × ?(mm)): | 56/0.30 |
| Conductor Diameter: | 3.0mm |
| Outer Diameter: | 6.0mm |
