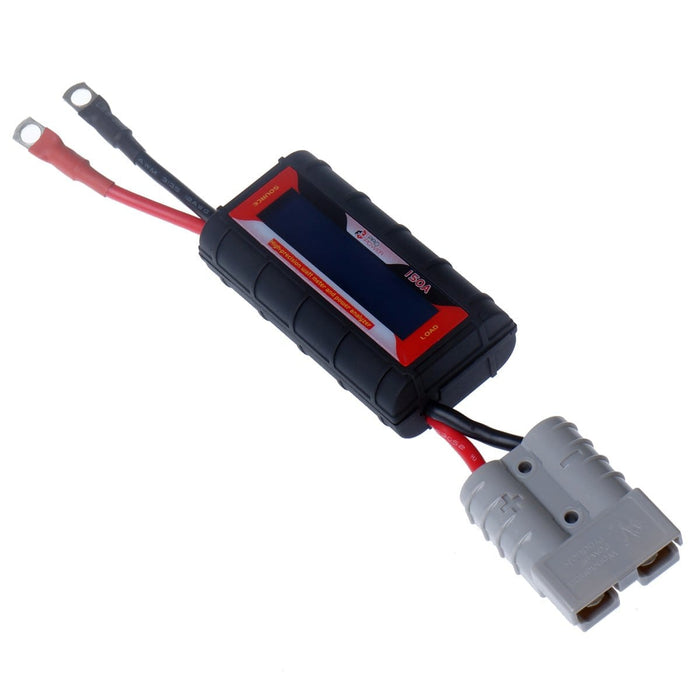

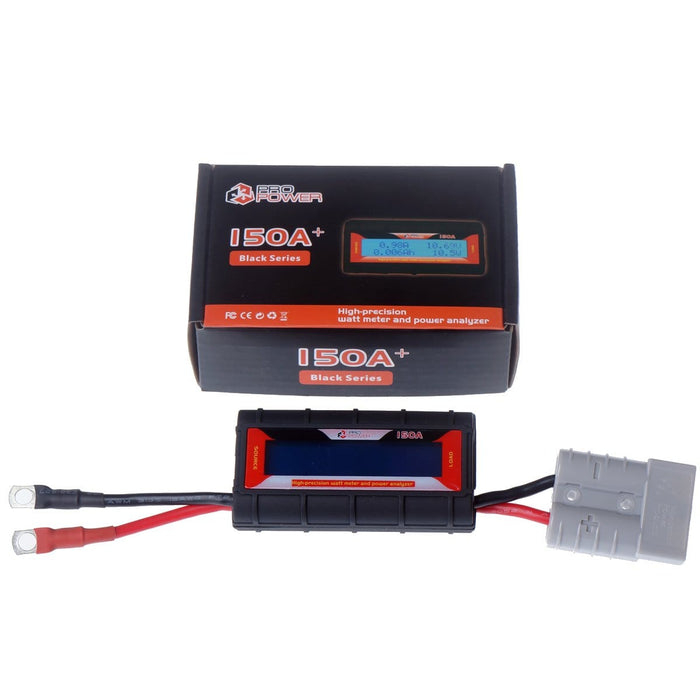

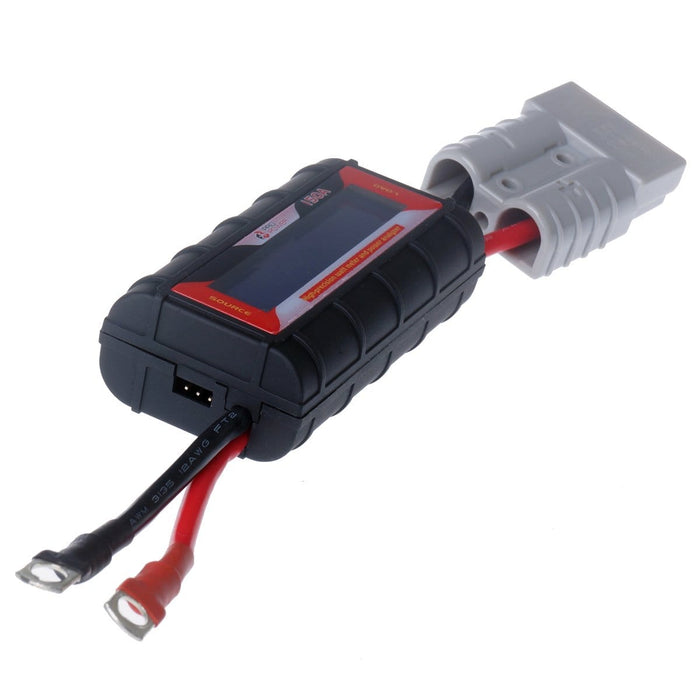

Pro Power Digital Watt Meter 60V 150A Volt Analyzer Camping Caravan Solar Panel
Ever wondered how much power your solar panel was producing? It's often difficult to measure this without special equipment or expert knowledge - until now.
Enter the Solar Watt Meter, a simple device that is easily installed and provides you with all the key ratings of your solar panels in realtime. This is a perfect companion to our range of portable solar panels.
Installation is easy - the watt meter has two anderson plugs, and is installed in-line between your solar regulator and batteries/load. Simply connect the solar panel regulator's output to the "source" side of the watt meter, and connect the battery/load cabling to the "load" side. Once there is power flowing through, the device will initialise and show you a full range of ratings including:
- Current (Amps/A) at the present moment
- Voltage (Volts/V) at the present moment
- Power (Watts/W) at the present moment
- Total Amps (Amp hours/Ah) since device initialised
- Total Power (Watt hours/Wh) since device initialised
- Highest Voltage Min (Vm) since device initialised
- Highest Power Peak (Watt Peak/Wp) since device initialised
- Highest Current Peak (Amp Peak/Ap) since device initialised
- 2 Years Warranty
The Solar Watt Meter only requires a a tiny 7mA draw to operate, so there will be no significant reduction in your power production during usage.
|Pro Power Solar Watt Meter Specifications|
|Safe Operating Voltage||0V - 60V|
|Safe Operating Current||0 - 100A Intermitten
Note: this assumed the device's writes are in free air, and attached to connections at or below temperature of 35< sup="">C with adequate air flow. 100A operation time depends on ambient and wiring temperatures.<>
|Nominal Operating Conditions||0< sup="">C - 50< sup="">C ambient air temperature, non condensing humidity
Note: Max temperature must be reduced at max current rating.<><>
|Measurement Update Period||400 mS|
|Data Queue Sequence Time||2 seconds|
|In Circuit Resistance||0.001 Ohms|
|Auxiliary Power Voltage||4.0V - 60V
eg. from a receiver battery
|Dimensions||Approx. 200mm L x 50mm W x 20mm D (including anderson plugs)
Approx. 84mmL x 50mmW x20mmD (only watt meter unit)
|Display Screen||16 Character x 2 row STN LCD|
|Solar Watt Meter Measurement Parameters|
|Voltage||0 - 60V, 0.01V Resolution
Note: 0V min. w/auxiliary power, eg. a receiver battery. Otherwise, 4.0V
|Current||0 - 100A peak, 0.01A Resolution
Note: 50A continuous
|Power||0 - 6554W, 0.1W Resolution|
|Charge||0 - 65AH, 0.001Ah|
|Energy||0 - 6554Wh, 0.1Wh Resolution|
