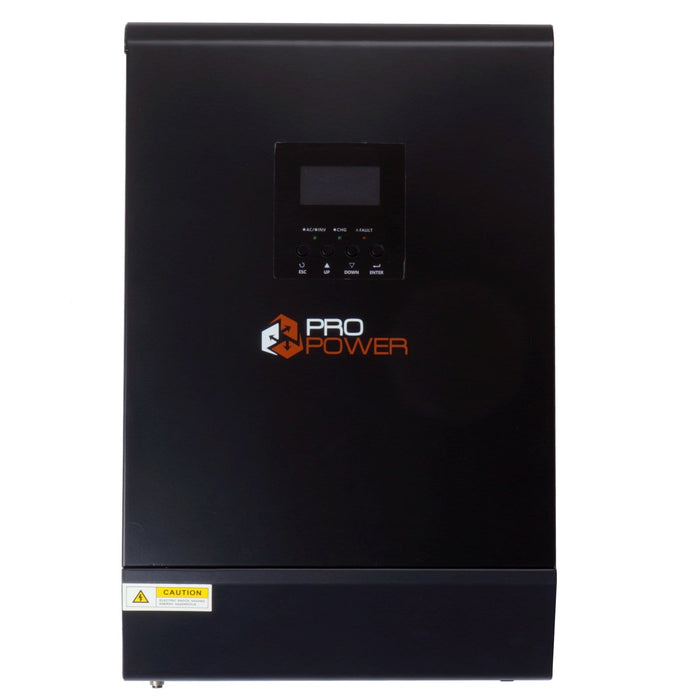

Pro Power 48V 4000W Integrated Power System MPPT Solar Inverter Battery Charger

Regular price $1,399.00

Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shopify Pay
  • Visa

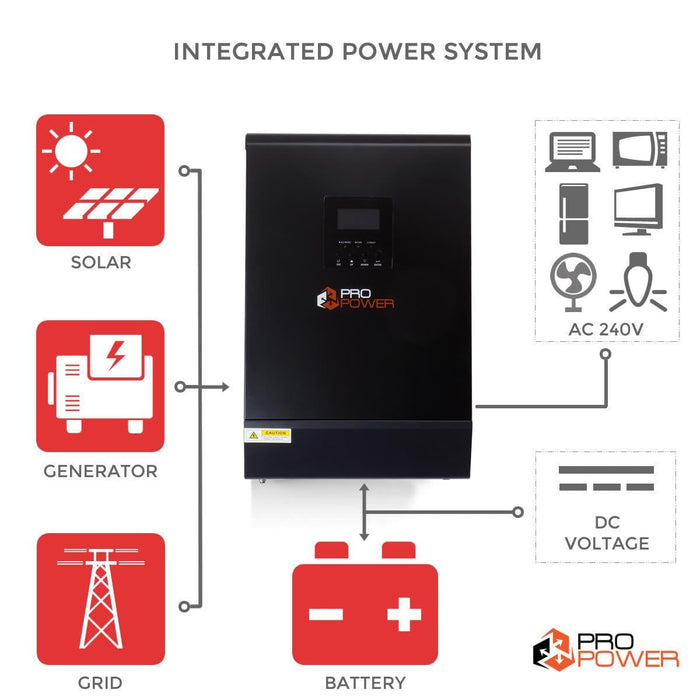

This is a multi-function inverter/charger,combining functions of inverter,solar charger and battery charger to offer uninterruptible power support with compact size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority,and acceptable input voltage based on different applications.


  • Pure sine wave output
  • Built-in 80A MPPT solar charge controller
  • Selectable input voltage range for home appliances and personal computers
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Smart battery charging design to optimize battery performance
  • Cold start function

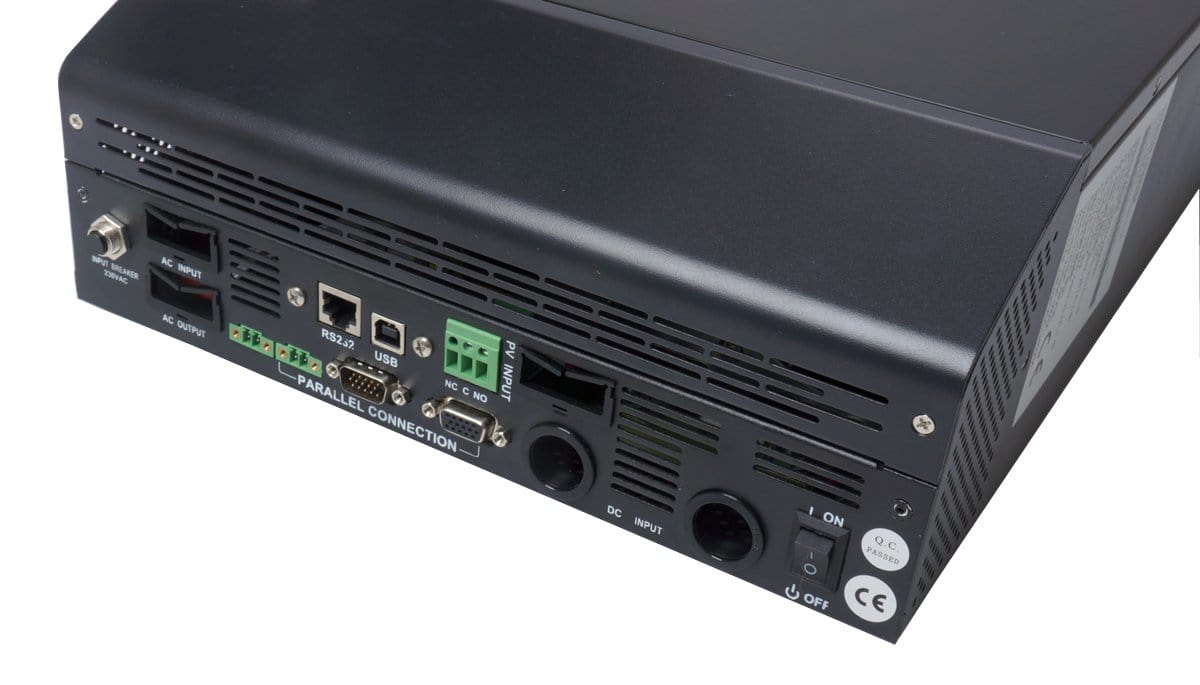

  • Parallel operation with up to 4 units

Technical Data

Default Battery System Voltage 48VDC
Surge Power 10000VA
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 230VAC±5%
Inverter Efficiency (Peak) 93%
Transfer Time 10ms(For Personal Computers) 20ms(For Home Appliances)
AC INPUT Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances)
Frequency Range 50Hz/60Hz (Auto sensing)
BATTERY Nominal voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 60VDC
SOLAR CHARGER & AC CHARGER Maximum PV Array Open Circuit Voltage 105VDC
PV Array MPPT Voltage Range 60~72VDC
Standby Power Consumption 2W
Rated Power 3000W
Maximum Efficiency 98%
Maximum Solar Charge Current 80A
Maximum AC Charge Current 80A
Maximum Charge Current 120A
MECHANICAL SPECIFICATION Dimension,W*H*D 295*460*120mm
Net Weight(kg) 10.95
OTHER Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C-55°C
Storage Temperature -15°C-60°C
