This charger need to be special ordered, it will take around 2-3 weeks to make it.
The length of the cable and the type of connects can be custom made.

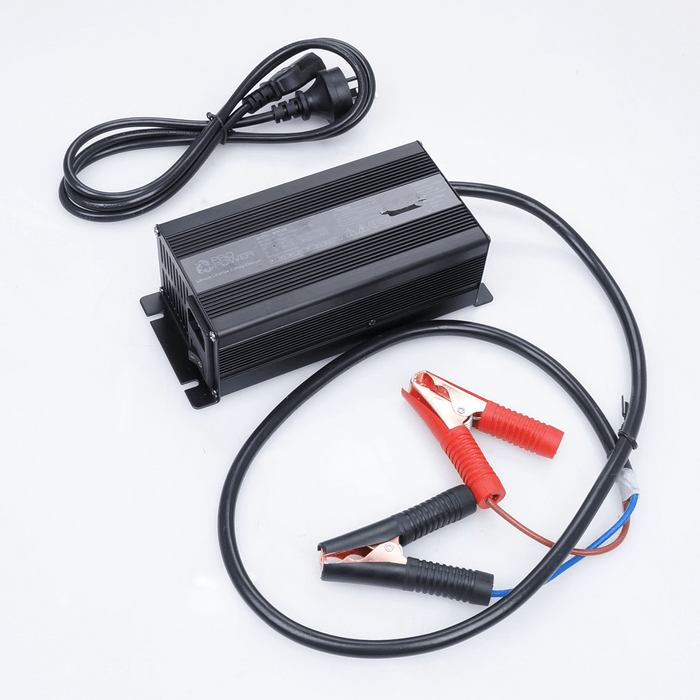

( The images is only from our 12v 20A charger, if you worry about the cable size, the cable for 60A charger will be much thicker)

Pro Power 24V 60A Lithium LiFePO4 Battery Charger with Display

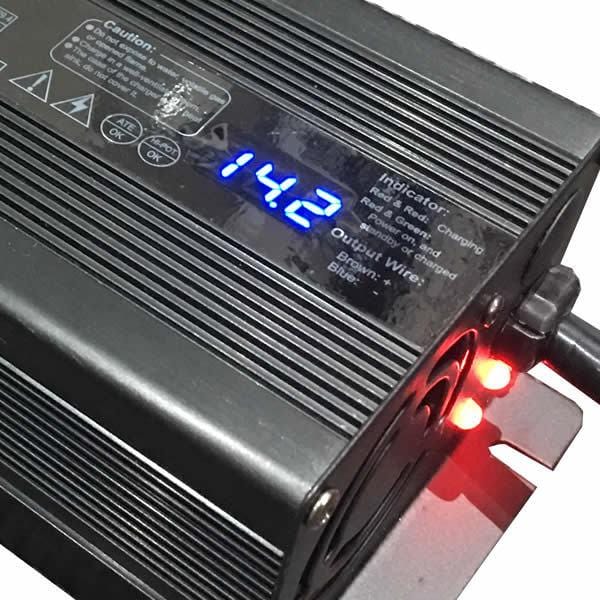

Indicator LEDs
RED & GREEN: STANDBY or CHARGED
RED & RED: CHARGING

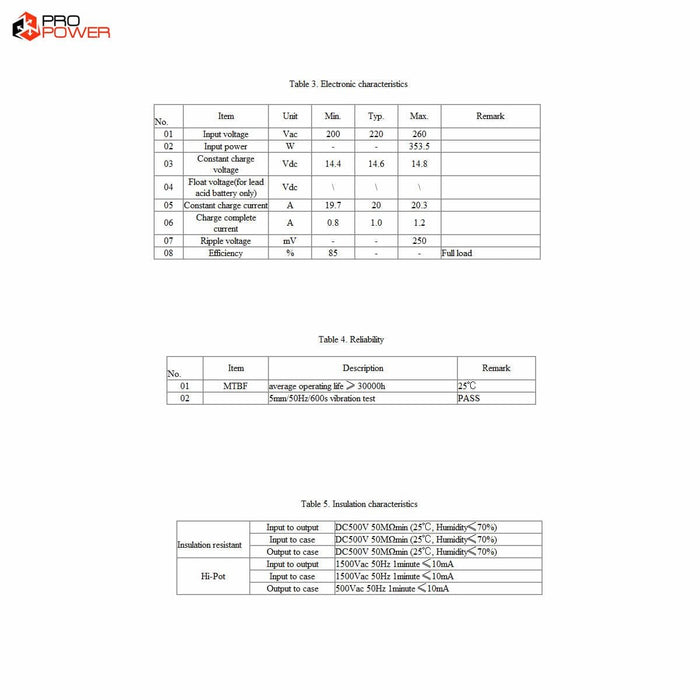

Table 3. Electronic characteristics

Size: 330mm×150mm×90mm

Protect Characteristics

Output Over Voltage Protection

When the charger output voltage exceeds the maximum charging voltage, the charger enters the standby state protection. It will restore to normal working condition automatically after troubleshooting.

Output Over Current Protection

When the charger output current exceeds the maximum charging current, the charger enters the over current protection status. It will restore to normal working condition automatically after troubleshooting.

Short Circuit Protection

When the charger has short circuit at output, the charger enters short-circuit protection status. It will restore to normal working condition automatically after troubleshooting.

Reverse Polarity Protection

If charger DC output terminal connect to battery reverse, fuse on the output side would be blown, output circuit would be cut off. Replace the fuse, and then connect to battery correctly, charger would resume working.

Working Conditions

Ambient temperature: -5℃ ~ +40℃;
RH: 5% ~ 95%;
Max. altitude: 10000 meter;
Cooling: series chargers use of forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise not exceeding 40℃.

Storage Conditions
Ambient temperature: -40℃ ~ +70℃;
RH: 0% ~ 95%;
Max. altitude: 20000 meter.

Reliability
Table 4. Reliability

Safety

Insulation Characteristics
Table 5. Insulation characteristics

Leakage Current

With max input and full load, the leakage current < 0.75m A, meet to Class II.

Standard specifies

EN 55022:2006+A1:2007
EN 61000-3-2:2006+A1:2009+A2::2009
EN 61000-3-3:2008
EN 55024:1998+A1:2001+A2:2003

Conducted interference: EN55011.13.14-1.15.22.FCC part 15&18.VCCI;
Radiated interference: EN55011.13.22.FCCpart 15&18.VCCI/EN55013.EN55014-1.

Anti-static: IEC/EN61000-4-2 8KV;
Pulse group: IEC/EN61000-4-4 2KV;
Lightning surge: IEC/EN61000-4-5 1.5KV;
Harmonic: IEC/EN61000-3-2 <25%.
