MC4 Solar Panel Connectors Male Female Set TUV IP67 30A PV Photovoltaic WaterProof
Come in Pairs ( 1 Pair = 1 Male House + 1 Female House + 1 Positive terminal + 1Negative Terminal)

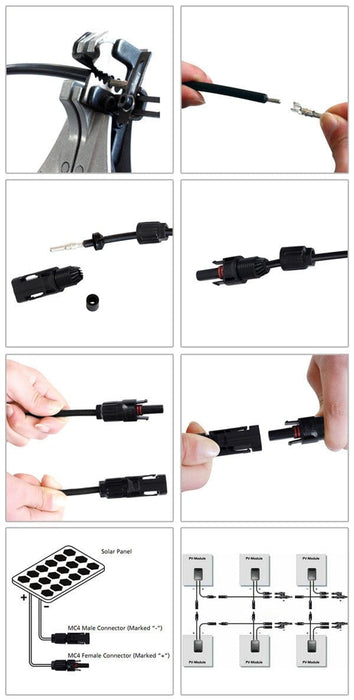

1) simple, safe, quick effective field assembly
2) Low transition resistance
3) Innovatively sealed, waterproof and dust resistant design: IP67
4) High current and voltage carring capacity
5) Self-locking design, high mechanical endurance
6) Excellent plastic material, UL94-V0 fire rating, anti-aging, waterproof, and resistance to ultraviolet radiation for long-term outdoor application
|

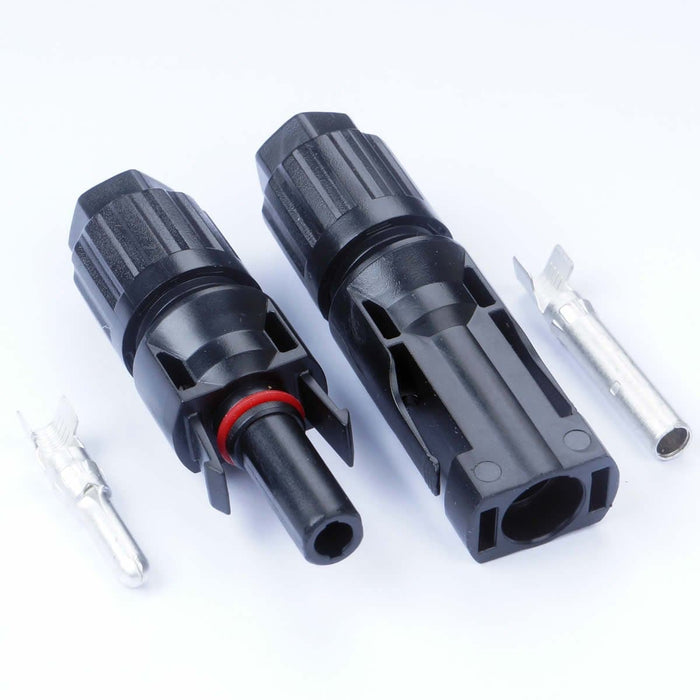

Complete connector include
|
Male house, female house, positive and negative terminal
|
|
Insulation material:
|
Polycarbonate
|
|
Contact material
|
Copper, Tin plated
|
|
Contact resistance
|
Less than 3m oHm
|
|
Fixed form
|
HFW
|
|
Rated current
|
30A
|
|
Rated voltage
|
1000V
|
|
Test voltage
|
6000 V (50Hz, 1Min)
|
|
Degree of protection
|
IP67
|
|
Safety class
|
2
|
|
Flame calss
|
UL94-V0
|
|
Insertion force
|
Less than 50N
|
|
Withdrawal force
|
More than 300N
|
|
Ambient temperature range
|
-40 degree - +90 degree
|
|
Suitable cable
|
2.5-6.0mm2 AWG14/12/10
|
