MC4 Adapter Cable Y Y3 Branch Connectors F/F/F/M And M/M/M/F For Solar Panels

Regular price $12.90

Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shopify Pay
  • Visa

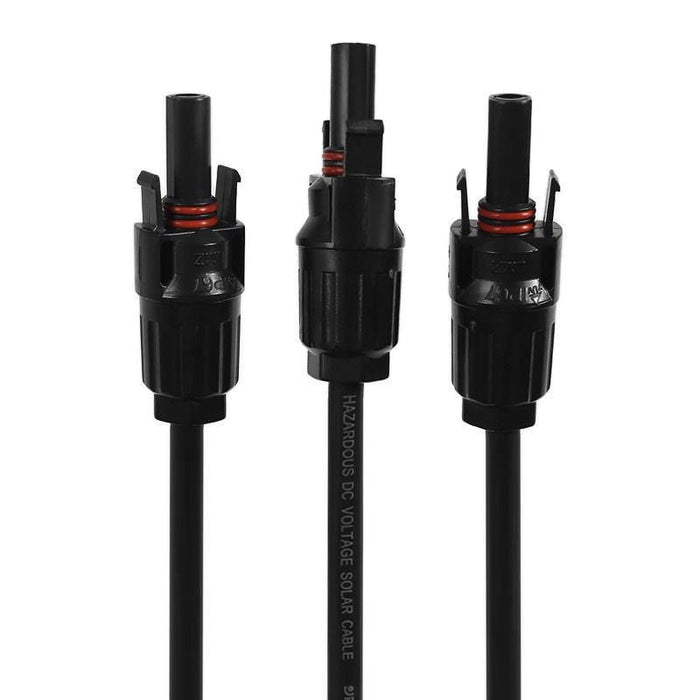

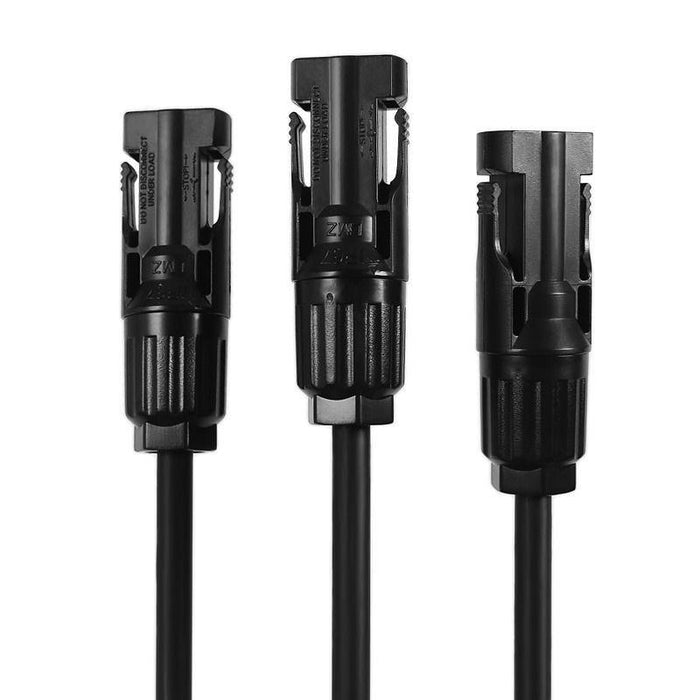

MC4 compatible solar connector / MC4 pv Y branch connector



Feature

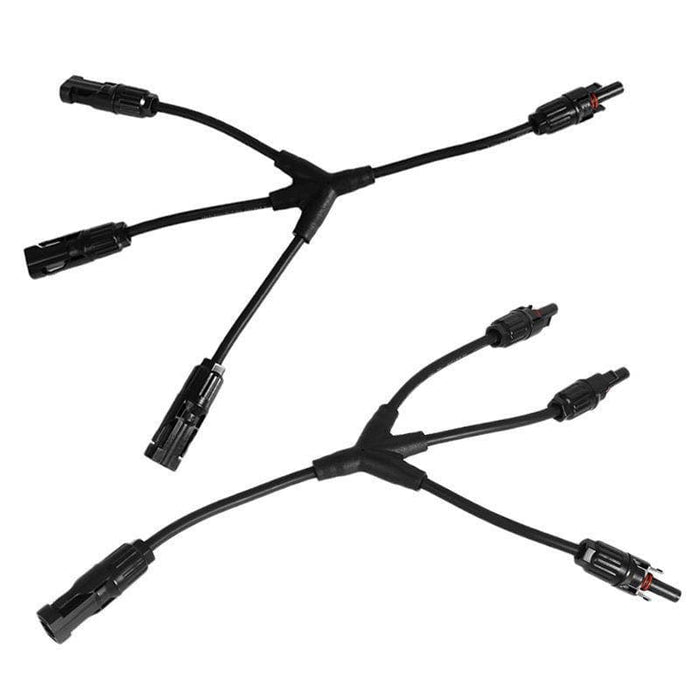

  1. 1 Pair = 1 FMMM cable + 1 FFFM cable

  2. this photovoltaic branch connector set is the perfect solution to link any number of solar panel

  3. with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover

  4. the length of cable with connector are depend on the customer need it

  5. with convenient installation, strong commonality to meet the using requirement under bad outdoor condition

  6. TUV approved, IP67

  7. Total Length is 36cm, cable length is 24cm



Technical data























































Cable square



4mm2



Rate voltage



1000V



Rate current



30A



Contact resistance



≤5m Ω



Wire size range



2.5/4/6mm2(14/12/10AWG)



Protection degree



IP67



Operating temperature



-40°C...+85°C



Insulation material



PPO+PA



Contact material



Copper,Tin plated



Unmating force



200 Newton



gender



MMMF/FFFM



Locking system



Snap in
