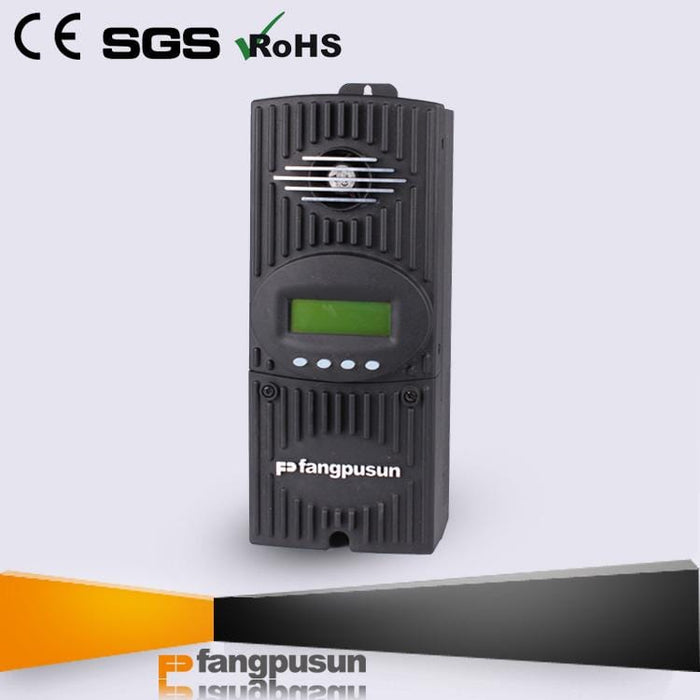

60A MPPT Regulator Charge Controller For Outback Offgrid Solar Panel Power

Regular price $948.00

Tax included. Shipping calculated at checkout.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shopify Pay
  • Visa

You will receive:



1 x MTTP60A charge controller



1 x Mate2 controller



Product features

Increases PV Array Output by up to 30%

Advanced Continuous Maximum Power Point Tracking

Full Power Output in Ambient Temperatures up to 104°F (40°C)

Battery Voltages from 12 VDC to 60 VDC

Programmable Auxiliary Control Output

Built-in 128 days of Data Logging

Fully Network Integrated and Programmable

2 Years Warranty







Displays

Text LCD display for operating parameters,fault messages,self test







Options

Menu-driven operation

Programming by buttons







Certificates

Compliant with European Standards(CE)



RoHS compliant

























































































































Nominal Battery Voltages



12, 24, 36, 48, or 60 VDC



(Single model - selectable via field programming at start-up)



Maximum Output Current



60 amps @ 104° F (40°C) with adjustable current limit



Maximum Solar Array STC Nameplate



12 VDC systems 900 Watts / 24 VDC systems 1800 Watts /



48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts



NEC Recommended Solar



Array STC Nameplate



12 VDC systems 750 Watts / 24 VDC systems 1500 Watts /



48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts



PV Open Circuit Voltage (VOC)



150 VDC absolute maximum coldest conditions / 145 VDC start-up



and operating maximum



Standby Power Consumption



Less than 1 Watt typical



Power Conversion Efficiency



98.1% @ 60Amps in at 48 VDC System voltage - Typical



Charging Regulation



Five Stages: Bulk, Absorption, Float, Silent and Equalization



Voltage Regulation Set points



10 to 80 VDC user adjustable with password protection



Equalization Charging



Programmable Voltage Setpoint and Duration



- Automatic Termination when completed



Battery Temperature Compensation



Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell



Voltage Step-Down Capability



Can charge a lower voltage battery from a higher voltage PV array



- Max 150 VDC input



Programmable Auxilary Control Output



12 VDC output signal which can be programmed for different control



applications (Maximum of 0.2 amps DC)



Status Display



3.1" (8 cm) backlit LCD screen - 4 lines with



80 alphanumeric characters total



Remote Display and Controller



Optional Mate or Mate2 with RS232 Serial Communications Port



Network Cabeling



Proprietary network system using RJ 45 Modular Connectors with



CAT 5e Cable (8 wires)



Data Logging



Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float ,



Peak Watts, Amps, Solar Array Voltage,



Max Battery Voltage Min Battery Voltage and Absorb for each day along



with total Accumulated Amp Hours, and kW Hours of production



Hydro Turbine Applications



Consult factory for approved Turbines



Positive Ground Applications



Requires two Pole Breakers for switching both positive and



Negative Conductors on both Solar Array and Battery Connections



(HUB-4 and HUB-10 can not be used for



use in positive ground applications)



Operating Temperature Range



Minimum -40° to maximum 60° C

(Power capacity of the controller is automatically derated when operated



above 40° C)



Environmental Rating



Indoor Type 1



Conduit Knockouts



One 1" (35mm)on the back; One 1" (35mm) on the left side;



 Two 1" (35mm)on the bottom



Weight - Unit



11.65 lbs (5.3 kg)



 Shipping



13.64 lbs (6.0 kg)



Dimensions - Unit



13.5 x 5.75 x 4" (40 x 14 x 10 cm)



Shipping



18 x 11 x 8" (46 x 30 x 20 cm)



Options



Remote Temperature Sensor (RTS), HUB 4,

HUB 10, MATE, MATE 2



Menu Languages



English & Spanish

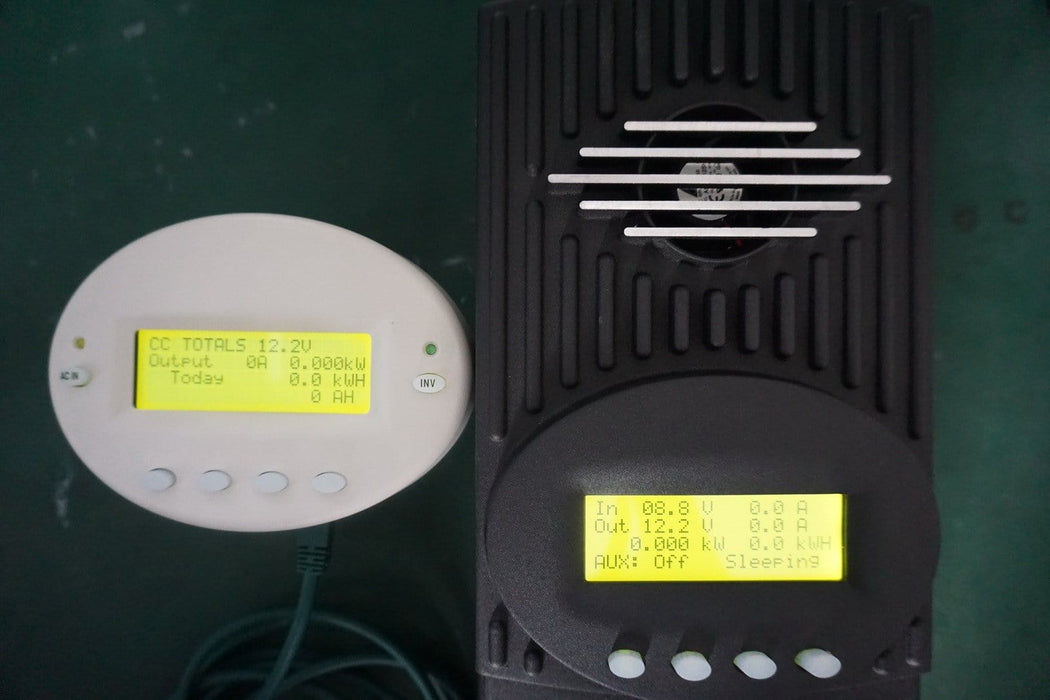

Mate2



The Fangpusun MATE is a complete system controller and display for

Fangousn FX2000 inverter/charger



MX60A MPPT PV charge controller



MX80A MPPT PV charge controller



It also compatible with outback 60A and 80A charge controller.







It provides a display of the operation as well as allows control

and adjustment of the setpoints.



The Fangpusun Mate also coordinates the operation of the entire system to maximize performance and to prevent

multiple products from conflicting.

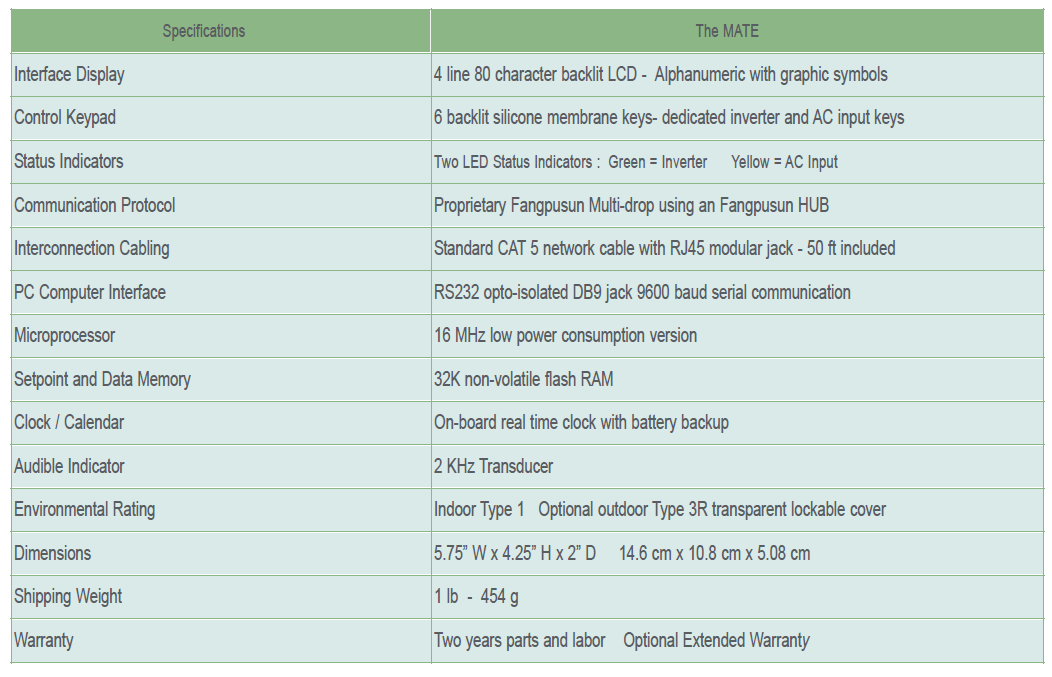

Features:

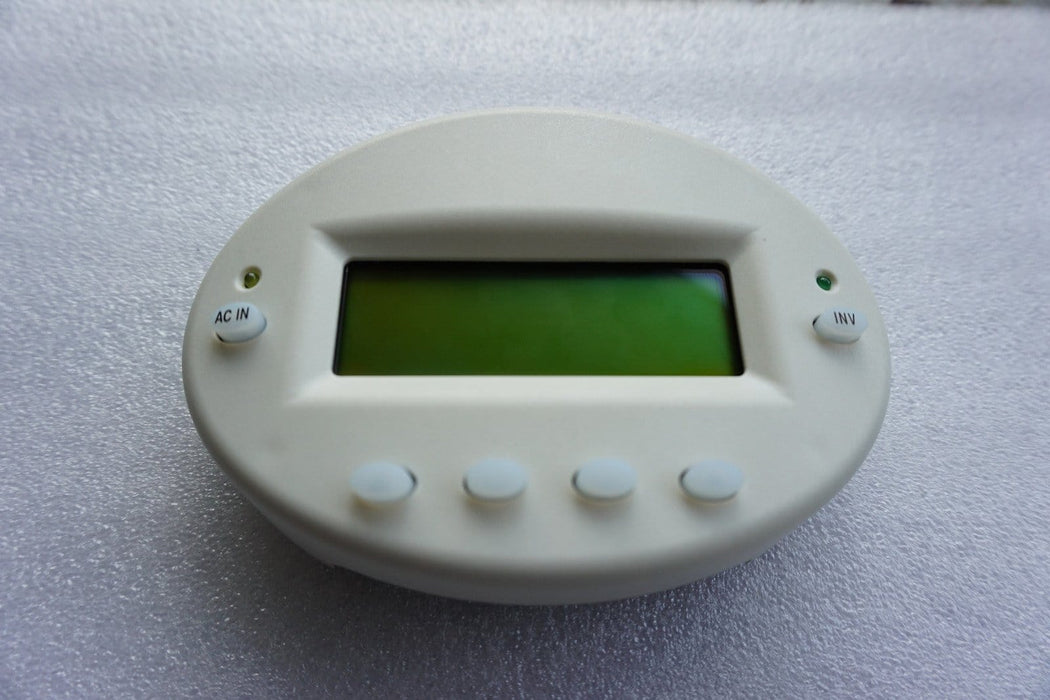

A 4 line backlit LCD display

A built in real time clock and calendar

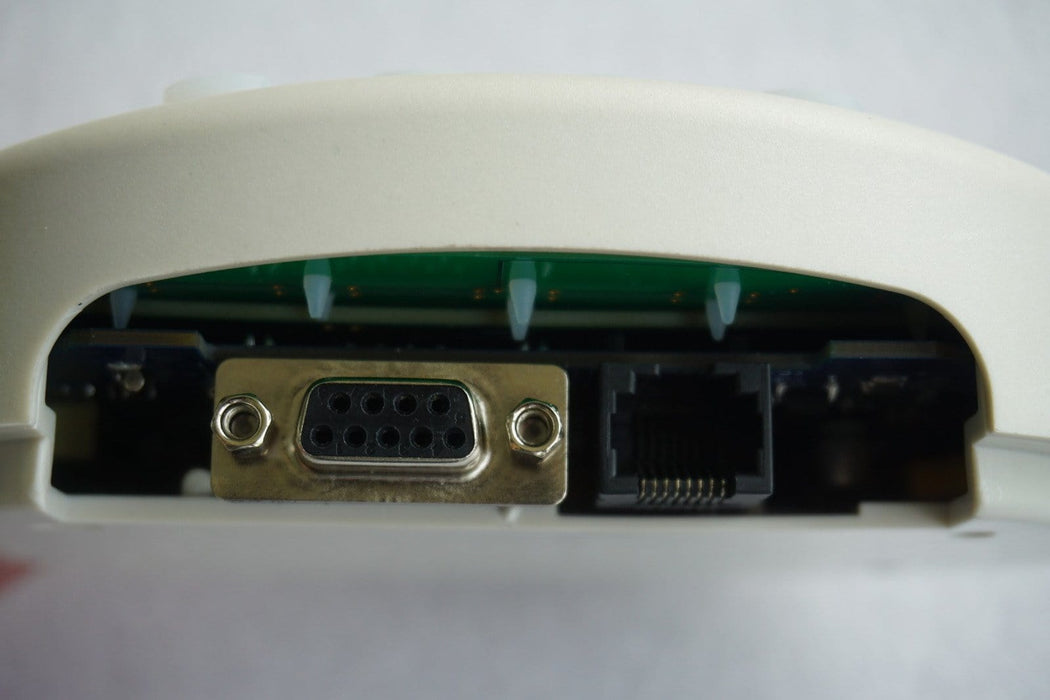

An opto-isolated RS232 port with a DB9 jack for connection to the serial port of a PC computer

Multiple measurements are displayed at the same time and reduces the amount of abbreviations required

Permanent storage, reprogram the system after a shutdown or battry replacement
