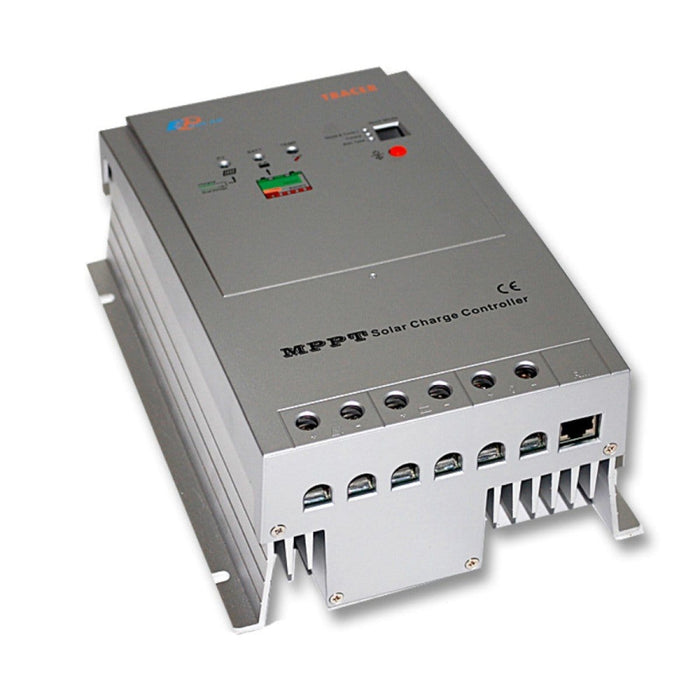

EPSOLAR Tracer series controller adopts MPPT technology (Maximum Power Point Tracking). This advanced tracking algorithm makes the solar module operate at an ideal voltage where the solar modules can produce the maximum available power. Compared to conventional PWM controllers, MPPT technology increases the charge efficiency by up to 30% and decreases the power of solar array needed.
The regulator has the ability to step-down the higher voltage solar array to recharge a lower voltage battery bank. This allows on grid solar modules or thin film modules to charge the off-grid battery, and the cable size can be reduced because of the small current from the solar array.
Features:
- MPPT technology
- Peak conversion efficiency of 97 %
- High Tracking efficiency of 99%
- Several seconds tracking speed
- Very fast Sweeping of the entire I-V curve
- 4 stage battery charge
Regulator
- Excellent thermal design and natural air cooling
- Full power output in ambient temperatures up to 45oC
- Temperature compensation function
- Sealed, Gel, Flooded battery type options
- Diversified load control: Manual, Dusk to Dawn, Dual timer, TEST
- RJ45 interface with optional remote meter
- CE certificate
Electronic protections:
- PV Array Short Circuit
- PV Overvoltage/Overcurrent
- Load Overload
- Load short circuit
- PV Reverse Polarity
- Battery Reverse Polarity
- High Voltage Transients
EPSolar 30A MPPT Regulator | |
---|---|
Physical Specifications | |
Dimensions | 242mm x 169mm x 91mm |
Mounting holes | 180mm x 160mm |
Terminal | 25mm2 |
Weight | 2kg |
Electrical Specifications | |
Nominal System Voltage | 12VDC/24VDC Automatic |
Rated charge current | 30A |
Rated discharge current | 20A |
Maximum Battery voltage | 32V |
Max solar input voltage | 150VDC |
Max PV input power | 12V system 390W 24V system 780W |
Self-consumption | <10mA(24V) |
Charge circuit voltage drop | ≤0.26V |
Discharge circuit voltage drop | ≤0.15V |
Communication | TTL232 / 8pin RJ45 |
Battery Charging | |
Charging Mode | Four stages |
Temp. Compensation | -30mV/oC/12V (25oC) |
Environmental Specifications | |
Working temp. | -35oC ~ +55oC |
Storage temp. | -35oC ~ +80oC |
Humidity | 10%-90% (NC) |
Protection | IP30 (indoor) |
